SchwiftyEA for QLab - Wireless remote control for theater and stage

SchwiftyEA for QLab - Wireless remote control for theater and stage

€200,00 EUR
€200,00 EUR
Sale Sold out
Tax included.

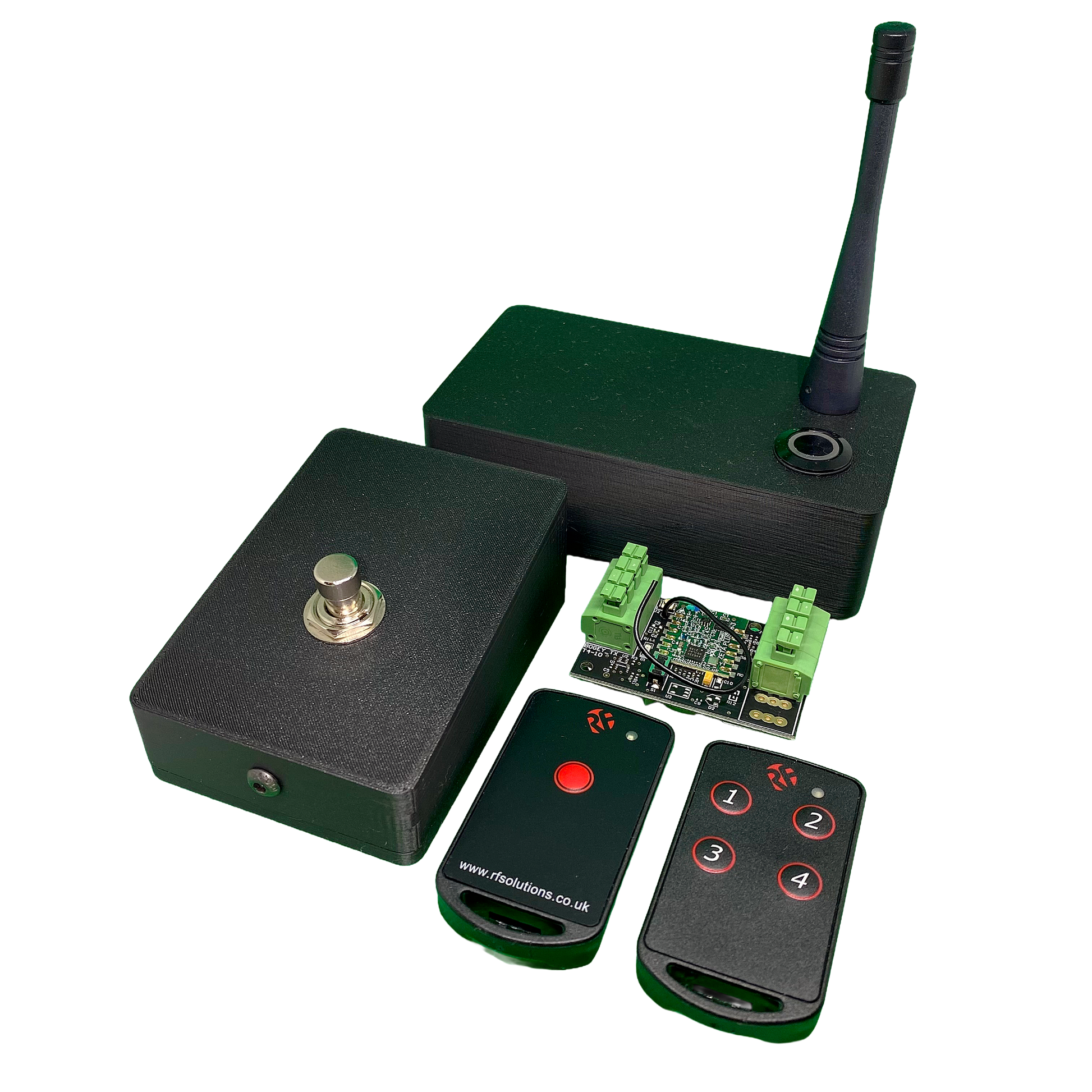

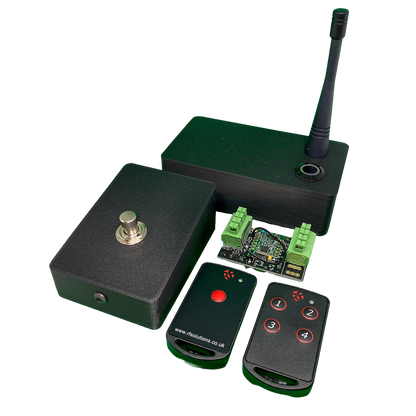

Pack

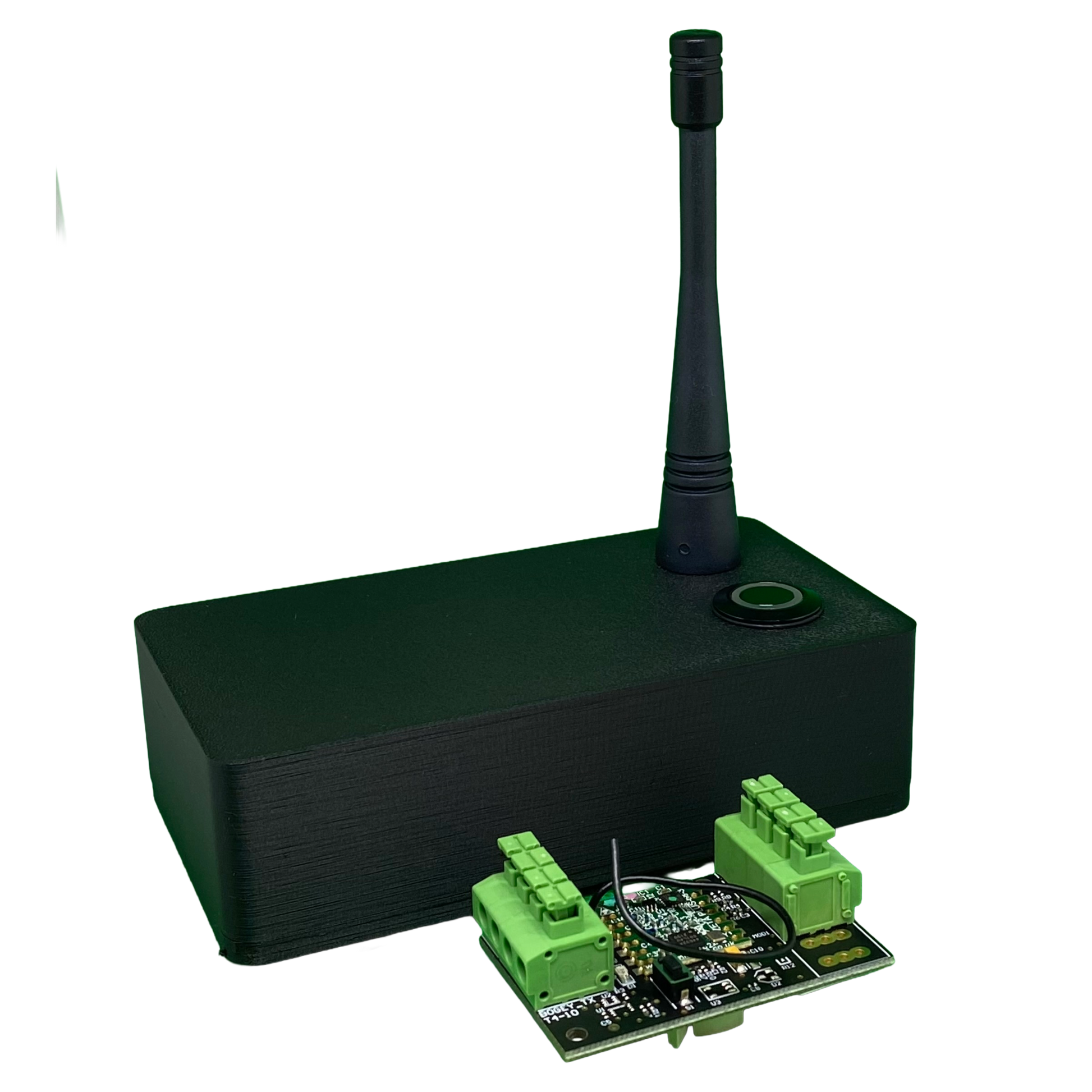

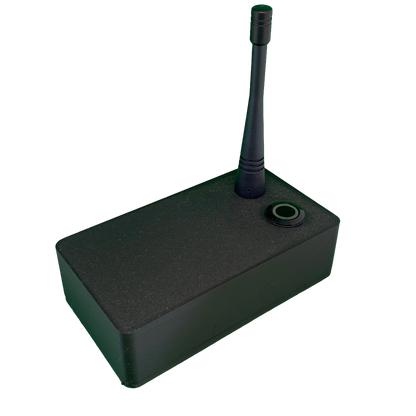

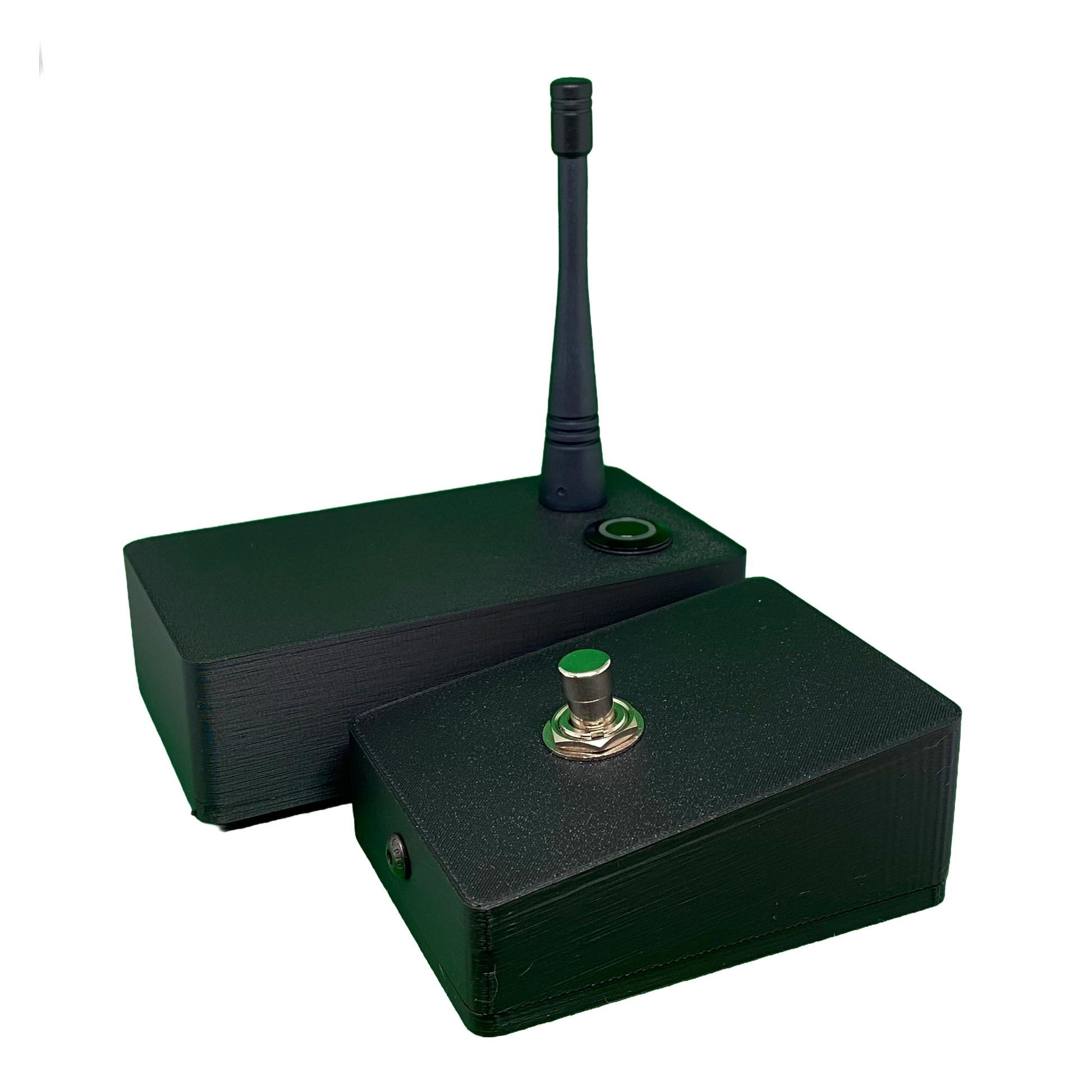

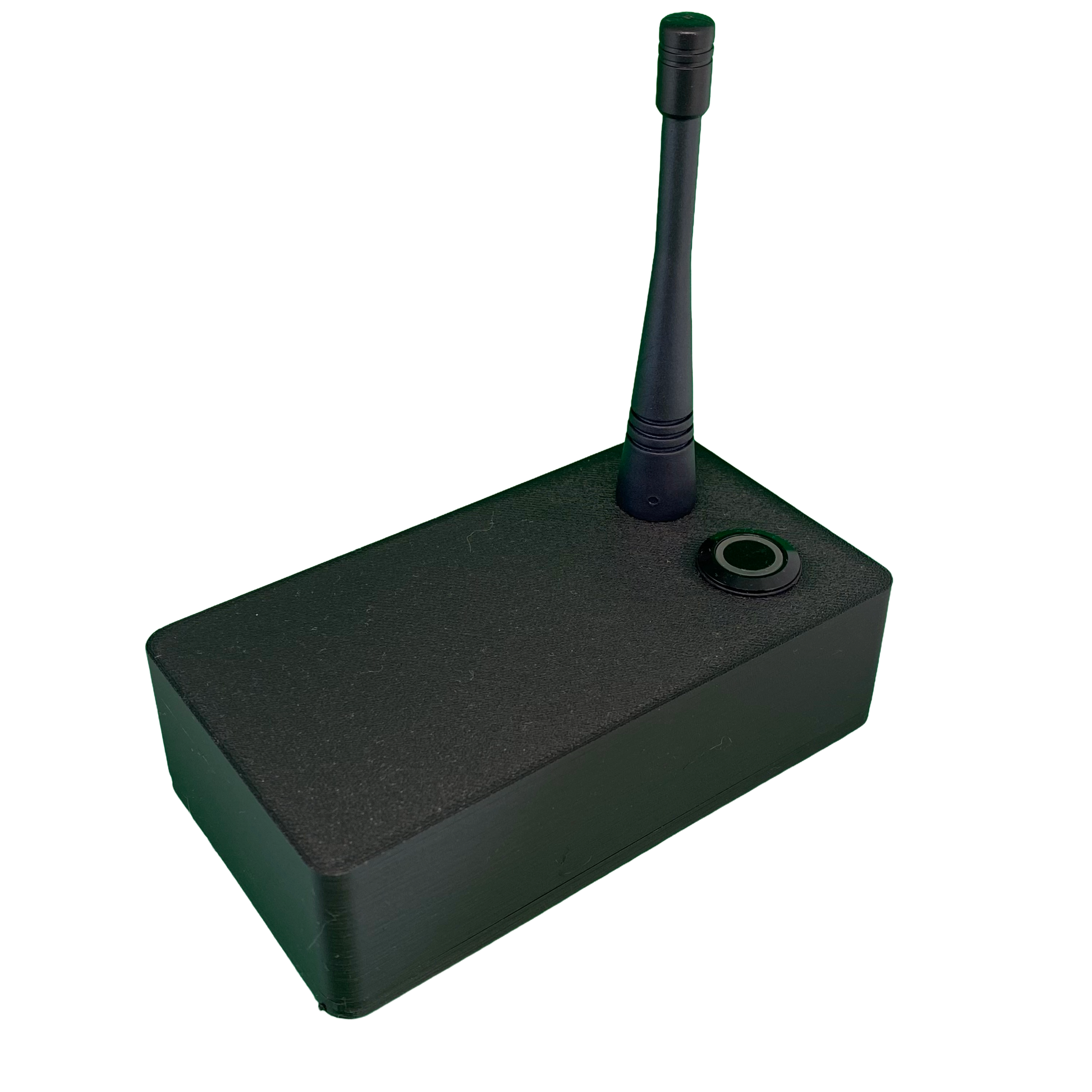

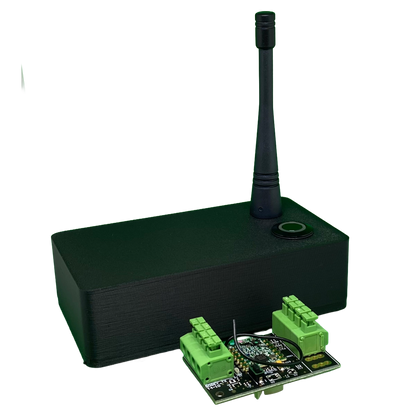

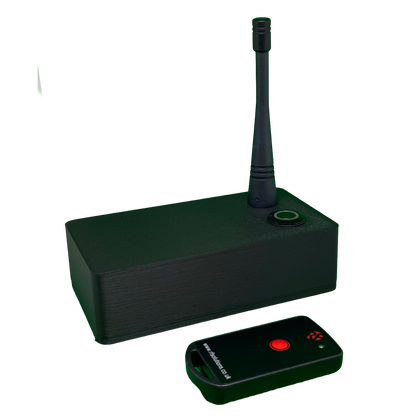

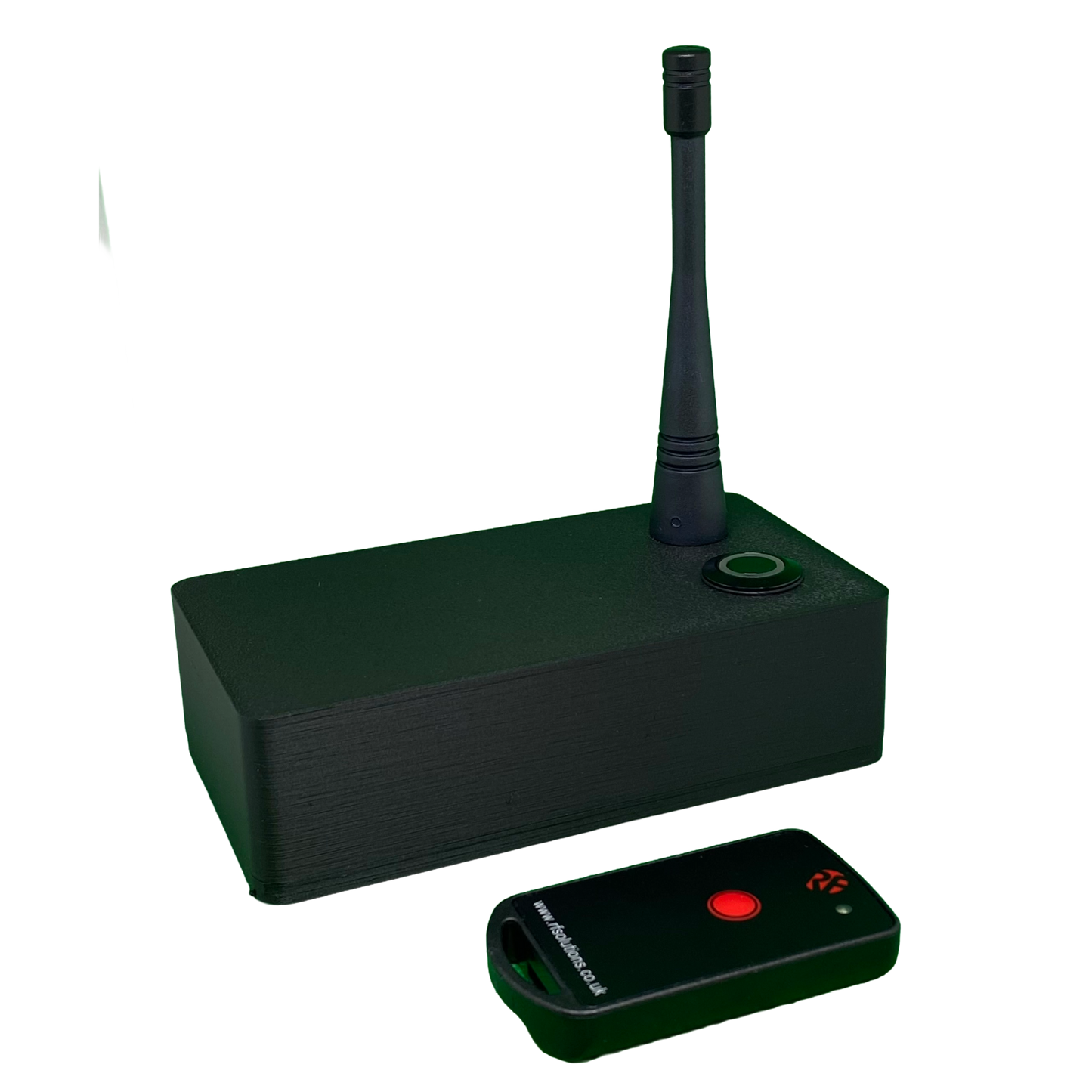

SchwiftyEA wireless MIDI for QLab and other MIDI enabled software.

SchwiftyEA is designed for theatrical use, enabling actors or technicians to trigger cues wirelessly. There are 4 available wireless channels, each sending a unique MIDI note. A MIDI On message is sent when the button is pressed, and a MIDI Off message is sent upon release. This makes it easy, for example, to configure QLab to start a cue on button press or on button release.

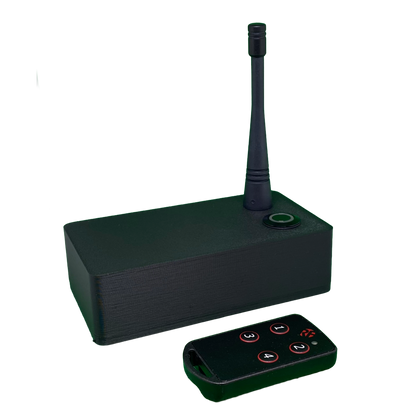

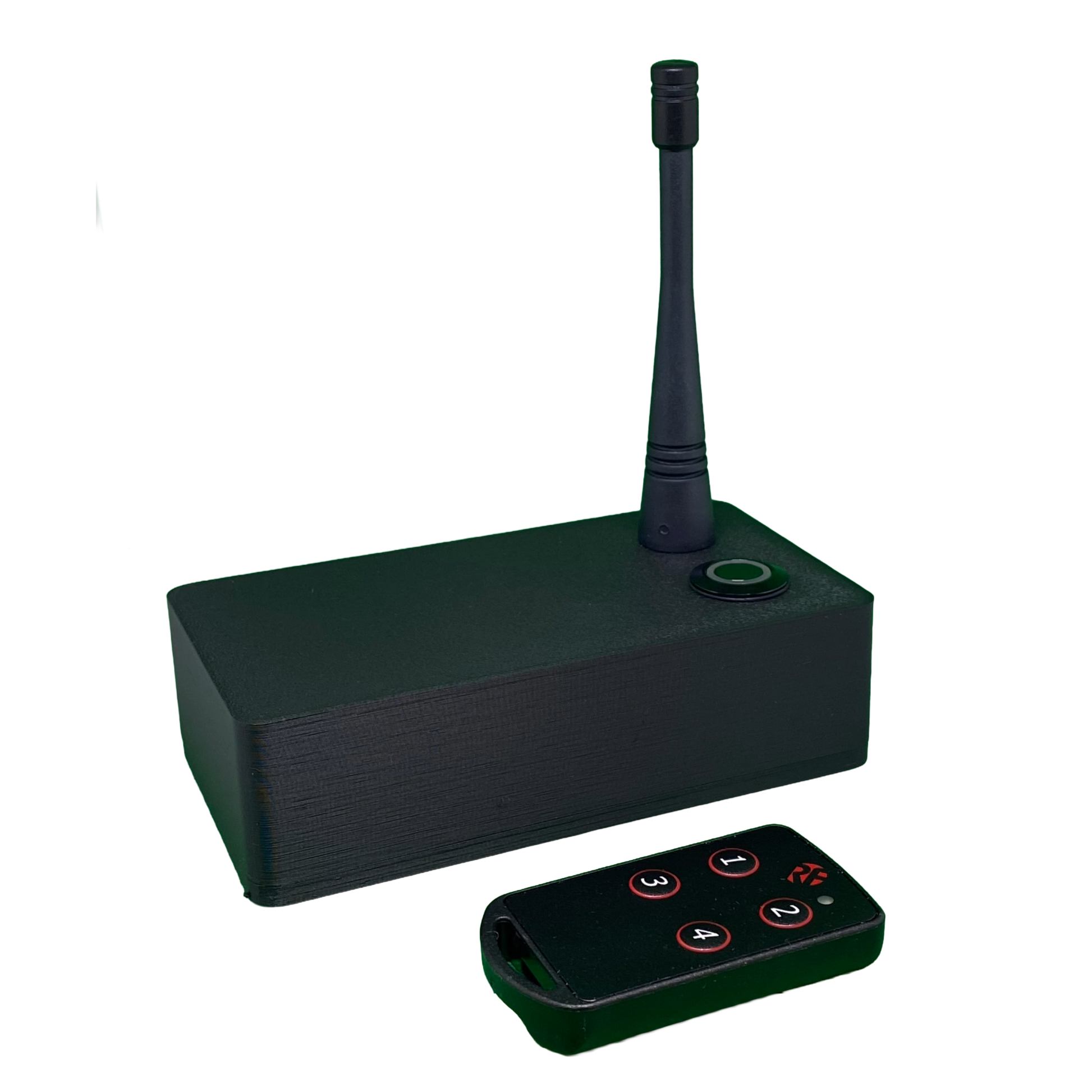

You can pair up to 30 total devices/buttons with a single SchwiftyEA receiver. A single SchwiftyRemote with 4 buttons uses 4 of these pairing slots (one slot per button).


Pairing Instructions (Channel 1–4)

Each time you press the SchwiftyEA pairing button, make sure to wait for the LED to finish blinking the appropriate number of times before pressing it again. Then, once the LED has blinked for the channel you desire, you have 10 seconds to press the button on the SchwiftyRemote you’d like to pair to that channel.

Channel 1 Pairing

  1. Press the pairing button once.
  2. Wait for the LED to blink 1 time.
  3. Press the desired button on SchwiftyRemote that you want to pair to Channel 1 (within 10 seconds).
  4. Pairing to Channel 1 is complete.


Channel 2 Pairing

  1. Press the pairing button once → wait for the LED to blink 1 time.
  2. Press the pairing button again → wait for the LED to blink 2 times.
  3. Press the desired button on SchwiftyRemote (within 10 seconds).
  4. Pairing to Channel 2 is complete.


Channel 3 Pairing

  1. Press the pairing button once → wait for the LED to blink 1 time.
  2. Press the pairing button again → wait for the LED to blink 2 times.
  3. Press the pairing button again → wait for the LED to blink 3 times.
  4. Press the desired button on SchwiftyRemote (within 10 seconds).
  5. Pairing to Channel 3 is complete.



Channel 4 Pairing

  1. Press the pairing button once → wait for the LED to blink 1 time.
  2. Press the pairing button again → wait for the LED to blink 2 times.
  3. Press the pairing button again → wait for the LED to blink 3 times.
  4. Press the pairing button again → wait for the LED to blink 4 times.
  5. Press the desired button on SchwiftyRemote (within 10 seconds).
  6. Pairing to Channel 4 is complete.


Deleting All Pairings

  1. Press and hold the pairing button on SchwiftyEA for 10 seconds.
  2. Release the button; the LED will blink 3 times to confirm that the memory has been erased.

This procedure removes all existing pairings from the memory.

SchwiftyEA MIDI Channel Mapping

Channel Push (Button Down) Release (Button Up)
1 MIDI On, Note 31, Velocity 127 MIDI Off, Note 31, Velocity 0
2 MIDI On, Note 32, Velocity 127 MIDI Off, Note 32, Velocity 0
3 MIDI On, Note 33, Velocity 127 MIDI Off, Note 33, Velocity 0
4 MIDI On, Note 34, Velocity 127 MIDI Off, Note 34, Velocity 0
