OrdoStage Signage

Everything you need is in the box: player, power supply and HDMI cable. Plug it into your screen and you're ready to go.

The OrdoStage Signage Player is a small, silent computer that turns any HDMI screen into a live info screen. It comes preinstalled with the OrdoStage Signage Player. Connect it to a screen and the network, link it to your OrdoStage account, and it shows what you design in the info screen builder: programme, posters, video, clock and logo.

Built on Raspberry Pi 5, in a Flirc case

• Raspberry Pi 5 with 4 GB RAM: enough power for smooth full-screen video and graphics.

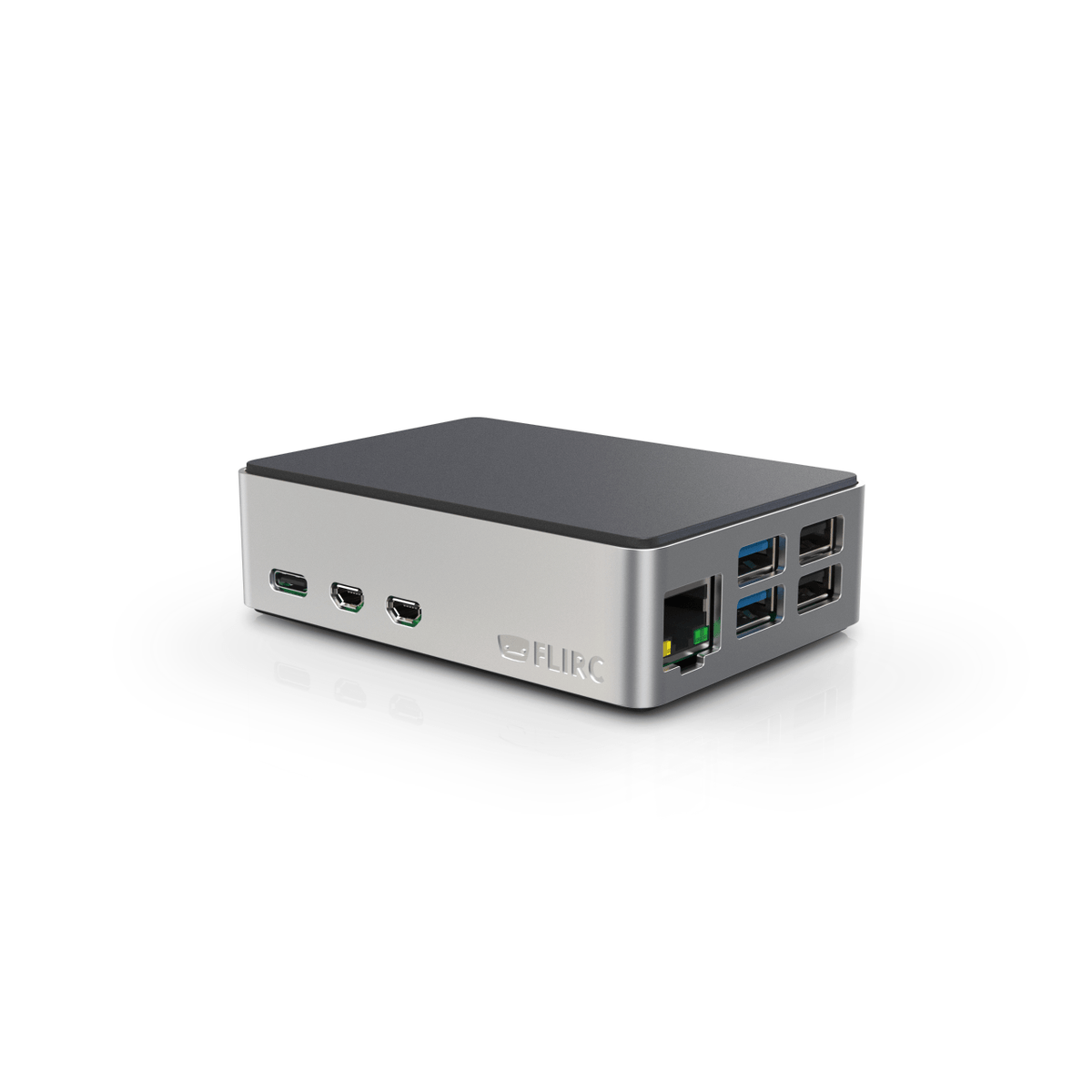

• Flirc aluminium case: the whole case works as a heatsink. There is no fan and no noise, so it is ideal for auditoriums, foyers and bars.
• Storage made for 24/7: the player runs on a SanDisk MAX ENDURANCE card, which is designed for continuous use. That makes it a good fit for screens that stay on all day, every day.
• Compact: it is small enough to mount discreetly behind the screen.

Made for venues

• Design once, show everywhere. Build layouts with sections, pages, video, posters, your programme, overlay text, a clock (digital or analog) and your own logo.
• Your programme, always up to date. Shows and events from OrdoStage appear on screen automatically. When there are more than fit, they rotate in a carousel.
• Smooth video playback. Clips are downloaded to the player before they play, and the screen shows download progress.
• Control from anywhere. Change content, adjust volume or mute sound from the player overview in OrdoStage, even from another city.
• Clean on screen. There is no mouse pointer and no desktop showing through, just your content.
• Automatic updates. The player keeps itself up to date with signed OrdoStage releases, so there is nothing to maintain.

What's in the box

• Raspberry Pi 5, 4 GB RAM
• Flirc aluminium case
• SanDisk MAX ENDURANCE 64 GB microSDXC card, preinstalled with the OrdoStage Signage Player
• Official Raspberry Pi 27 W USB-C power supply
• Micro-HDMI to HDMI cable (1 m)

Requirements

• A screen with HDMI input
• A network connection ([wired Ethernet recommended] / Wi-Fi)
• An OrdoStage account with Signage [plan/subscription]

Specifications

• Processor: Broadcom BCM2712, quad-core Arm Cortex-A76 @ 2.4 GHz
• Memory: 4 GB LPDDR4X
• Storage: SanDisk MAX ENDURANCE 64 GB microSDXC, built for continuous 24/7 use
• Video out: 2 × micro-HDMI
• Network: Gigabit Ethernet, dual-band Wi-Fi, Bluetooth 5.0
• Power: Official Raspberry Pi 27 W USB-C power supply (included)
• Cooling: passive, through the Flirc aluminium case (no fan)
• Software: OrdoStage Signage Player, preinstalled and ready to use
