SchwiftyThing

SchwiftyBogey

SchwiftyBogey

Regular price €48,00 EUR
Regular price Sale price €48,00 EUR
Sale Sold out
Tax may be applied depending on your location.

Connect up to four switches to the screw terminals and pair them with SchwiftyEA for wireless stage control of QLab or other show control software.
Offers a range of up to 1000 meters under optimal conditions.
Powered by a 3V CR2032 coin cell battery.

SchwiftyBogey — the stealthy way to hide up‑to‑four momentary buttons inside scenery, props, lecterns or interactive art pieces.

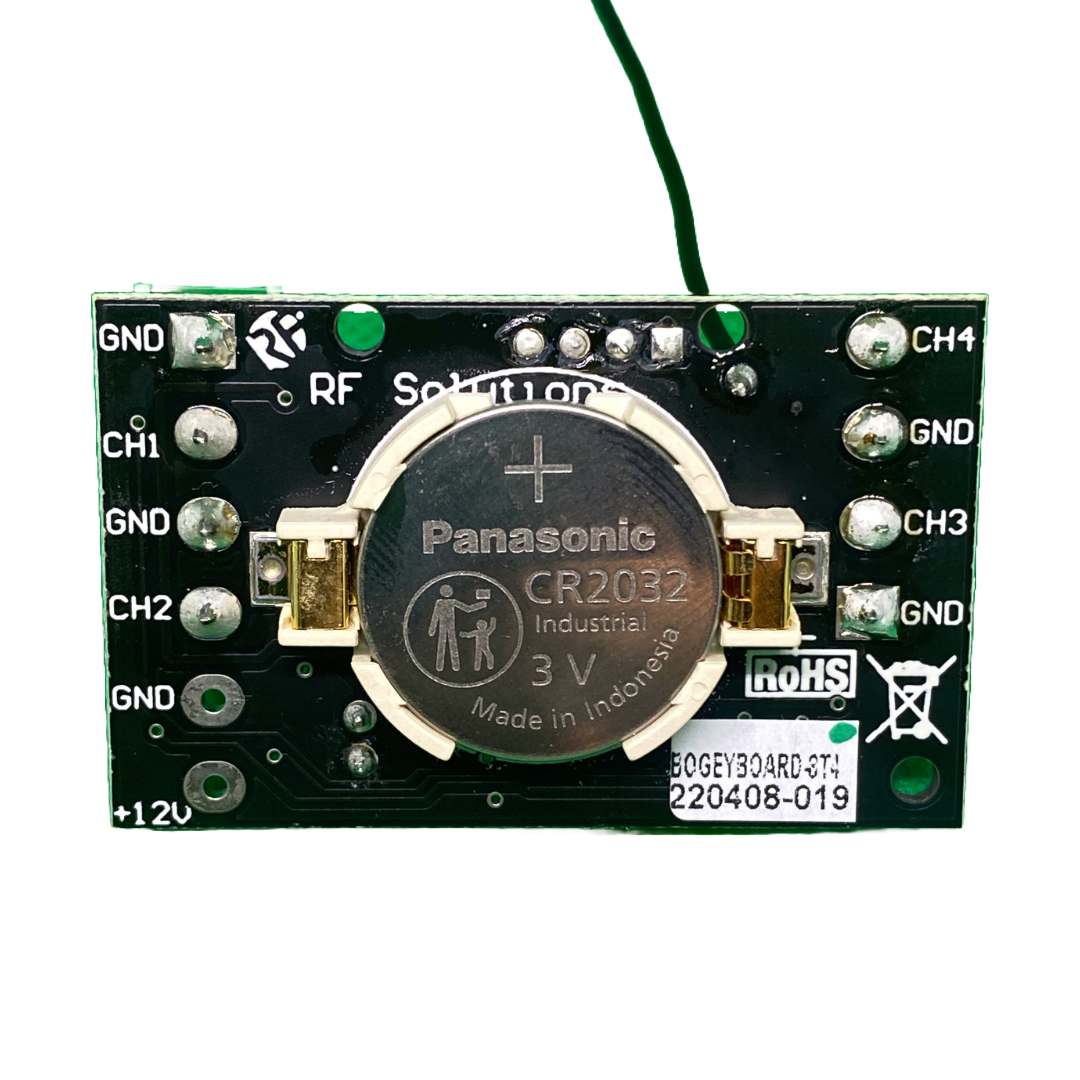

Slide your wire ends straight into the push‑in (“poke”) spring‑clamp terminals on the PCB, pair the Bogey with a SchwiftyEA receiver, and every tap is turned into a unique wireless MIDI note your show‑control software can react to.

Typical build ideas

Where to hide it Button style Example cue
In‑floor “GO” spots Momentary foot pedal Trigger next QLab scene
Escape‑room secret panel Leaf or reed switch Play reveal sound + unlock door
Lectern presenters Illuminated arcade pushbutton Toggle walk‑up music bed
Prop rifle or wand Sub‑mini tact switch Fire lighting & smoke FX

Quick specs

  • Inputs: 4 × 2‑pin push‑in spring‑clamp terminals, accepts 26‑20 AWG

  • Switch type: dry‑contact momentary (NO or NC)

  • Max cable run: ≈ 10 m shielded per input

  • Wireless partner: SchwiftyEA receiver (sold separately)

  • RF range: up to 1000 m LOS (868MHz)

  • Power: 1 × CR2032, ~12 µA standby, ~15 mA TX (≈ 1 year typical)

  • Dimensions: 55 × 35 × 18 mm bare PCB

  • Weight: 25 g with battery

  • Mounting: two M3 through‑holes

Buttons are not included. Any dry‑contact momentary switch will work – from tiny tactiles to heavy‑duty stomp pedals.

Add your favourite momentary buttons, tap to pair, and you’re ready to trigger flawless cues from anywhere on (or off) the stage.
